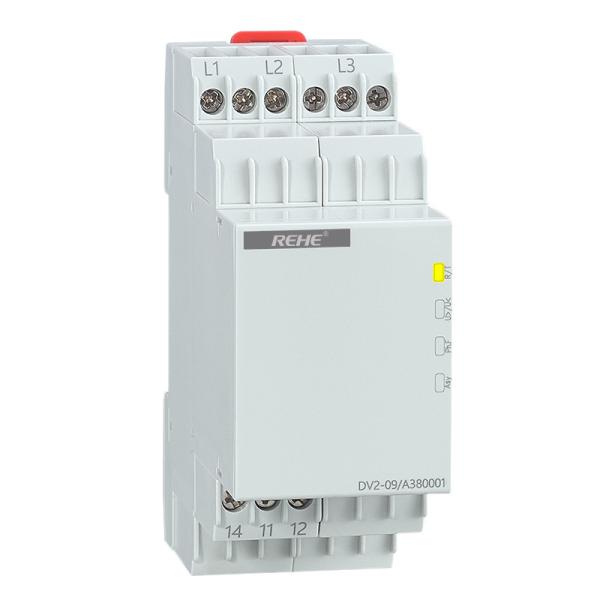

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Name: DV209 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay
Brand: SUCHEN
Price: 10.21 USD

Place of Origin : Zhejiang, China

Brand Name : SUCHEN

Model Number : DV2-09

Theory : Voltage Relay

Usage : PROTECTIVE

Supply terminals : L1/L2/L3

Supply voltage (AC 50-60Hz) : A380:380V, A440:400V, A415:415V(P-P)

Voltage set : 3*400V/50-60Hz

Upper voltage level : 240V-480V

Peak overload<1ms : 650V<1ms

Time delay t1 : Fixed, max. 200 ms

Time delay t2 : Adjustable 0.1-10s

Rated current : 10A/AC1

Switching voltage : 250V AC1/24V DC

Mounting : DIN rail EN 60715

Packaging Details : 1.Strong Strandard Export Package,Meet The Long-Distance Transportation

Price : $10.21/pieces

Contact Now

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Technical parameters

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

♦ Monitoring of 3-phase mains:

- voltage in 2 levels (undervoltage and overvoltage) in range 120-277V (3P+N) or 208-480V (3P3W).

- phase asymmetry (can be switched off)

- phase sequence

- phase failure

♦ Function of second relay (independent/parallel).

♦ Adjustable delay for short peaks for each lavel independently.

♦ M480: For circuits 3×400V (without neutral)

♦ M211: For circuits 3×400/230V (with neutral)

♦ Galvanically separated supply voltage AC 400V, AC 110V, AC 230V, AC/DC 24V.

♦ Output contact: 2×changeover 10A/250V AC1

♦ 2-MODULE, DIN rail mounting.

Description

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Connection

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Symbol

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Function

DV2-09 Protective 3 phase Voltage Monitoring Relay Under Over Voltage Detector Relay

Model	Supply voltage (AC 50-60Hz)	Switching voltage	Unit	Price
DV2-09	A380:380V, A440:400V, A415:415V(P-P)	250V AC1/24V DC	1PC	$10.21
